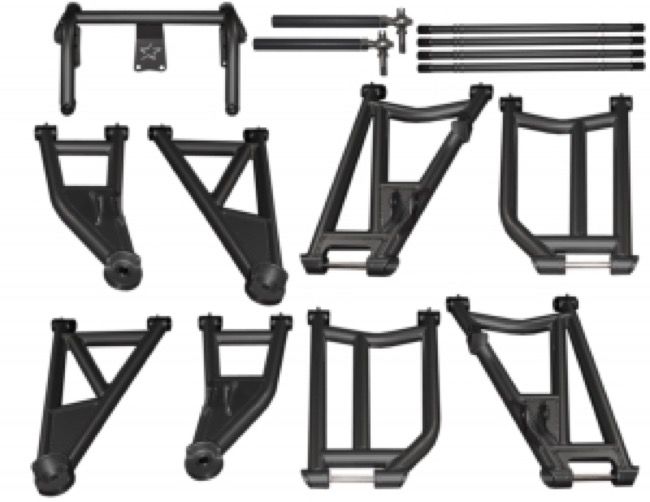

LoneStar Racing XTR +6.5 Suspension System for the Yamaha Rhino. OEM wheels will fit on the front. To use the OEM wheels on the rear, a wheel spacer is required. However, all aftermarket 12" cast 5+2 offset wheels will fit front, and rear with no spacers. The Douglas spun aluminum wheels require a 4+3 offset in 12" diameter to fit properly. Some minor fender trimming is required. To obtain the full benefits of this suspension system, we recommend that your Rhino have some performance engine modifications. This suspension system is built to complement the high speeds and high performance driving style that you demand. Special long travel shocks are required.
Note: Some LoneStar Racing products are built on order. Standard build time is between 2 to 4 weeks. Contact us if you would like to confirm availability of this product prior to ordering it.
Fitment: 08-> 6.5 inch wider per side 2 inch forward, and 2 inch rear to extend wheel base 15.5 inch of rear wheel travel 14.25 inch front wheel travel Grease-able, and rebuild-able pivots on chassis side with high performance Delrin bushings Rebuild-able uni-ball pivots on spindle side Over-sized 5/8 inch hi-misalignment tie-rod ends, with chrome-moly tie-rod extenders Delrin steering stops to prevent damage to CV joints at full steering turn TIG welded from large diameter certified 4130 alloy tubing All tabs precision laser cut from certified 4130 alloy sheet Fully engineered using 3D CAD modeling and analysis Front Shock Tower for optimum shock specifications Uses OEM rear sway bar Lifetime Warranty Now featuring Quick Caster to fine tuning steering feel! Easily adjustable from 4 to 6 degrees depending on your preference. Includes LoneStar Racing Axles.
Price is for an un-painted product, if you want to enquire about powdercoat options and cost, please contact us prior to ordering, if not product will be sent un-painted.
