SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XPL HD LED
-Amp Draw: 1.63A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

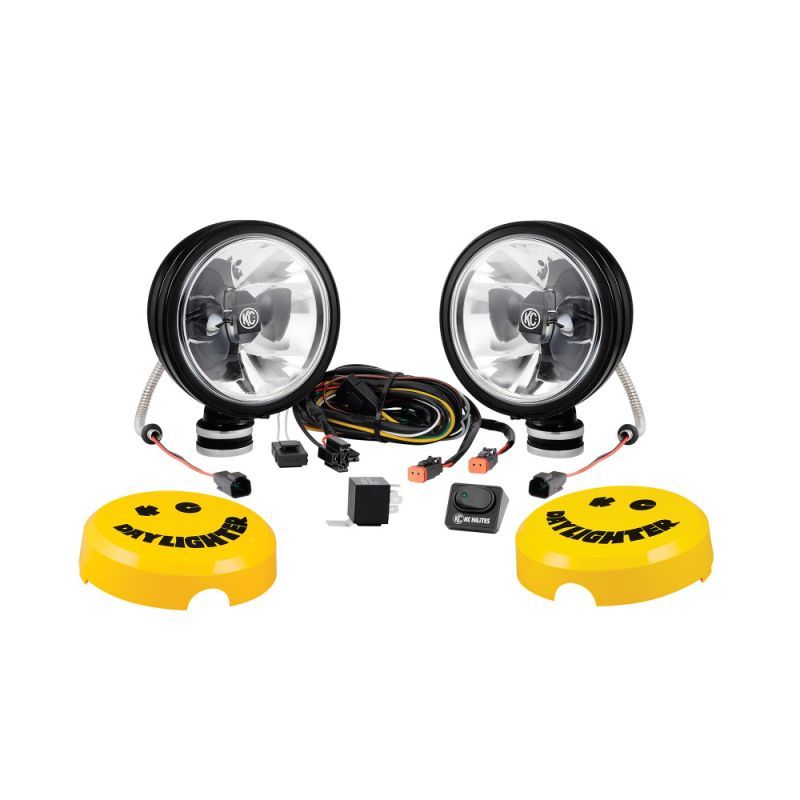

PARTS INCLUDED -(2) 20W 6" Gravity® LED Daylighter lights
-Deluxe Wiring Harness w/2-Pin weatherproof connectors
-(2) Protective KC Daylighter light covers
-30 Amp Illuminated Switch w/ Switch Panel
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 2,150 lx @ 10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Spot Beam- Provides focused bright light for maximum forward distance and high-speed visibility.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim their lights ensuring beam stability and consistency.
RACE PROVEN STRENGTH & DURABILITY
The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.
SKU 0651
Weight 8.000000
Wattage Per Light 20W
Total Wattage 40W
Amp Draw Per Light 3.3 a
Voltage 9V-32V
Lumens Per Light 2,300 lm
Lux Per Light 2,150 lx
Candela Per Light 215,000 cd
Light Temp 5000 K
Lens Color Clear
LED Color White
Beam Pattern Spot
Beam Distance 972 m
Light Technology LED
Mount Location A-Pillar / Ditch, Bumper, Overhead, Rear / Back-up
Size of Products 6"
Material Stainless Steel
Product Finish Black
Included Components 2 x Gravity LED™ Daylighter(Black Steel) Spot Beam Light, Wiring Harness with Weatherproof Connectors, Illuminated LED Light Switch, 2 x 6" Protective KC Daylighter light Guards, Mounting Hardware
Color Black
Product Dimensions W: 6.22 " x H: 8.42 " x D: 5.38 "
UPC 084709006518
IP Rating IP67
