Set your Silverado apart from the rest with Baja Designs LED Grille Kit. Our OnX6 30 inch Arc Bar Grille Kit has been specifically designed for (17) Heavy Duty models giving you a clean OEM look and massive increase in lighting performance.
Baja Designs Features:
Satisfactions Guarantee - 30 Day Money Back Guarantee
Limited Lifetime Warranty - Complete Purchase Protection
uService - Replaceable Lenses And Optics
ClearView - All The Light, Right Where You Need It.
MoistureBlock - Waterproof, Rain Proof, Submersible
CopperDrive - Only LED Driven At 100 percent
5000K Daylight - Less Driver Fatigue, Natural Color Specifications:
Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 278W / 21.7A (Low) 222W / 17.1A
Dimensions: 30 inch x 4.29 inch x 2.69 inch
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware and Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft and Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

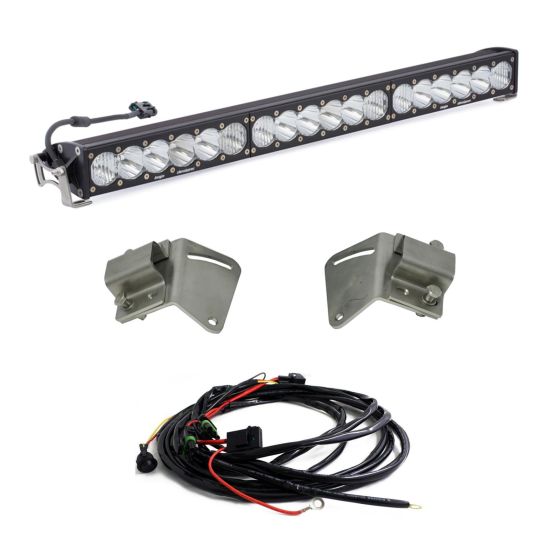

Includes:
x1 OnX6+, 30 inch Driving/Combo LED Light Bar
Toggle Switch Wiring Harness
Vehicle Specific Mounts
Hardware
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
Fits: 2017 2017 Chevrolet Silverado 2500 HD High Country 2017 2017 Chevrolet Silverado 3500 HD High Country 2017 2017 Chevrolet Silverado 2500 HD LT 2017 2017 Chevrolet Silverado 3500 HD LT 2017 2017 Chevrolet Silverado 2500 HD LTZ 2017 2017 Chevrolet Silverado 3500 HD LTZ 2017 2017 Chevrolet Silverado 3500 HD WT 2017 2017 Chevrolet Silverado 2500 HD WT
