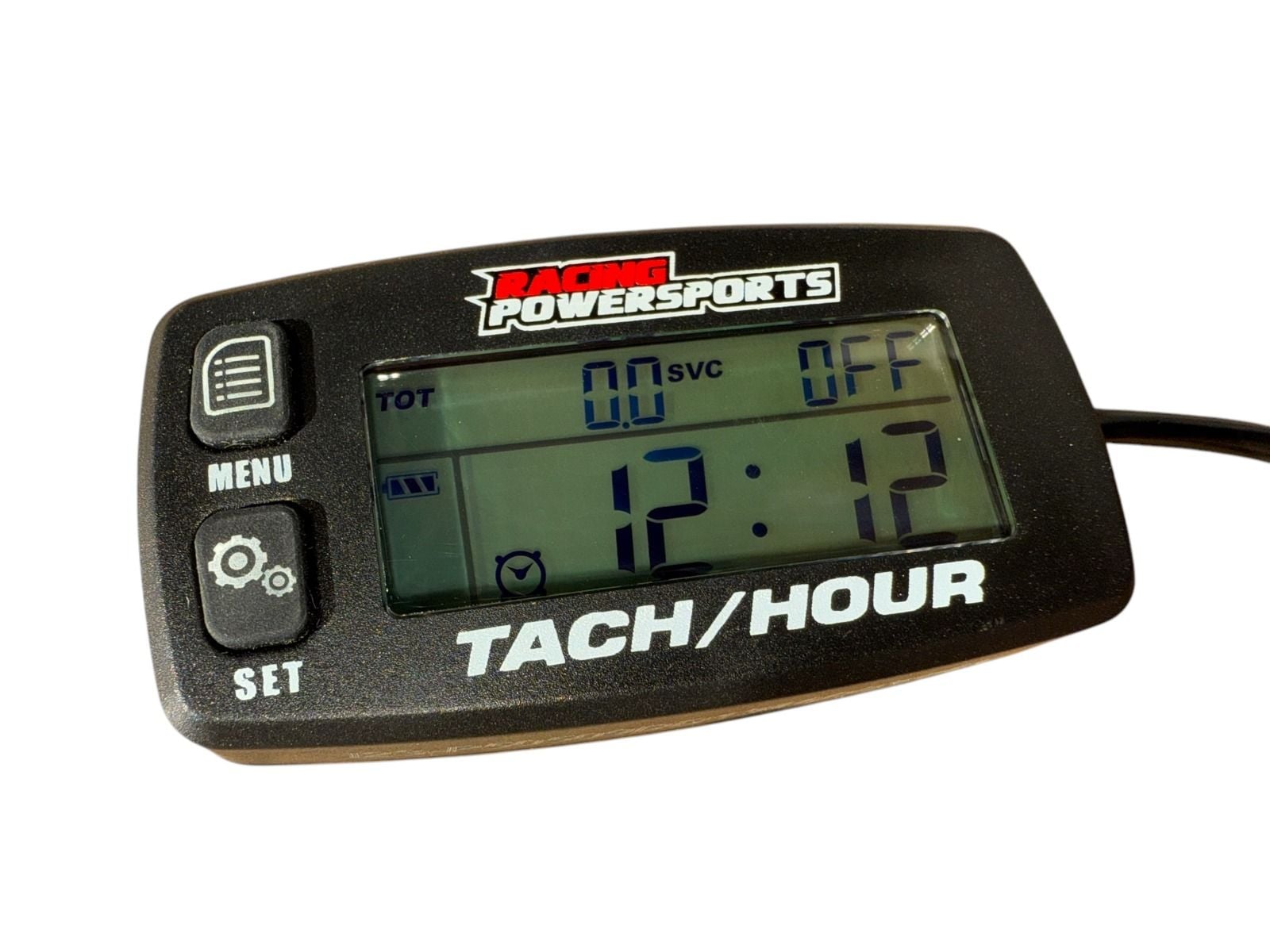

The Racingpowersports RPS-HM-B032 Tachometer / Hour meter is a device to measure the gas engine working time and real-time RPM value, which detected signal by spark plug. Multi-colored backlights remind the RPM alert status, Countdown tracking time for the maintenance reminder, User shutdown can be save the battery lifetime with data retained, Waterproof design can be used for any external bad conditions.
RPS-HM-B032 is an hour meter tachometer which have functions: engine running hours record,maintenance reminder and RPM measurement.
It with default green backlight which can help you to use it at night or dim place, the red backlight will be displayed to remind you the maintenance arrival and RPM exceed.
This device have favorable water resistance which can keep the good working condition up to waterproof rate IP6
It attached the built-in replaceable battery CR2032 with long running lifetime.
Applications
This hour meter suitable for Outdoor Power Equipmen,Generators,Agriculture,Construction Machinery,Vehicles,Boats etc.such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc.
Hour Meter Funtions
TOT Hours: Always display the engine total running hours whatever it on or off.
JOB Timer: It record an resettable hours running during a single working period.
SVC Timers: Perform the regular maintenance tasks by 2 individual channels for different engine components, remind you the arrival status.
TOT & JOB hours range: 0 to 99,999 hours.
SVC maintenance timers range: 0 to 1000 hours/each group.
Green & Red backlights display.
Replaceable built-in battery.
Seperate screen for multiple functions usage.
Tachometer Functions
Real-time RPM: Record the engine real-time RPM value when it run, help to calibrate the accuracy by 9 engine firing patterns and 4 RPM measurement range.
MAX RPM&RPM ALERT: Display the maximum RPM value since engine start to work.
RPM ALERT: Alert the RPM running exceed based on the preset RPM alert value.
RPM range: 0 to 25,000 RPM.
COLOR Black
NSTALLATION
Signal wire installation
Surface Velcro mounting
APPLICATION
Gasoline engine equipmen: Such as generators, lawn mowers, motorcycles, ATVs, etc.

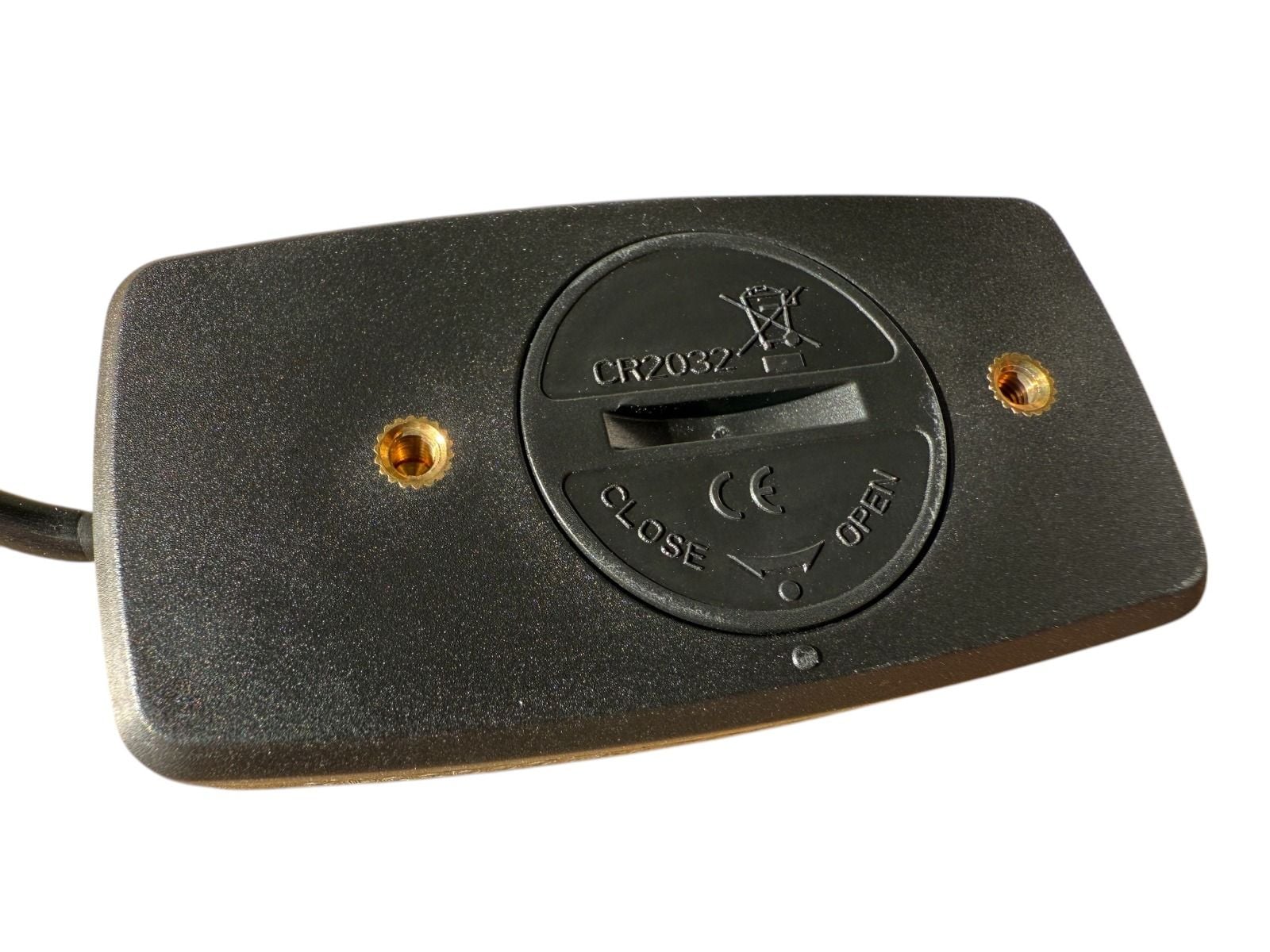

Internal replaceable CR2032 battery , Data retained after battery change.
LCD screen size 40.8×16.8 mm, it can be shut down by related buttons.
Programmable backlits mode: Auto / OFF/ ON.
Standard wire length is 1500mm (4.92 ft).
24 hours system for the clock display.

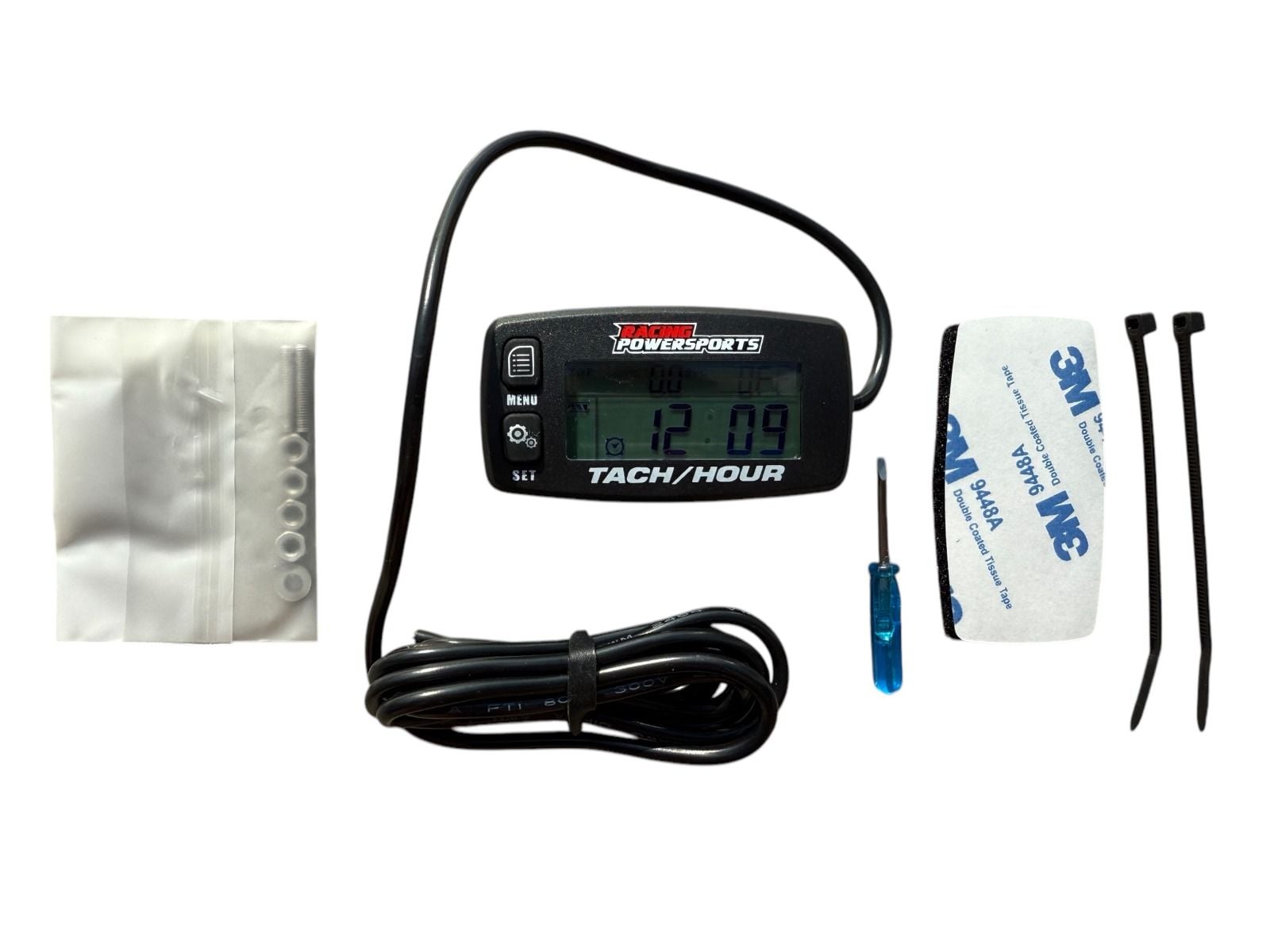

Easy to install, including Velcro, cable tie, Instruction manual.
Waterproof rating: IP65;CE,ROSH certification.
Color ---- Black
Tachometer----RPM / Max RPM / Alert RPM
Hour Meter---- Total hours
TOT hours range 0-99999H
JOB hours range 0-99999H
Timing Accuracy 0.1H/1H
SVC range SVC:0-1000H; SVC2:0-1000H
TOT initial time range Yes (within 1 hour)
RPM range 0-25000RPM
Alert RPM setting range OFF/1000-25000RPM
RPM accuracy 10RPM
Firing patterns 1P1R 2P1R 3P1R 3P2R 4P1R 5P2R6P1R 8P1R 1P2R
RPM Refresh Rate 0.5S / 1.0S
Display mode LCD+Backlit
Backlit Mode On/Auto/Off (Green/red)
Screen size 40.8×16.8 mm

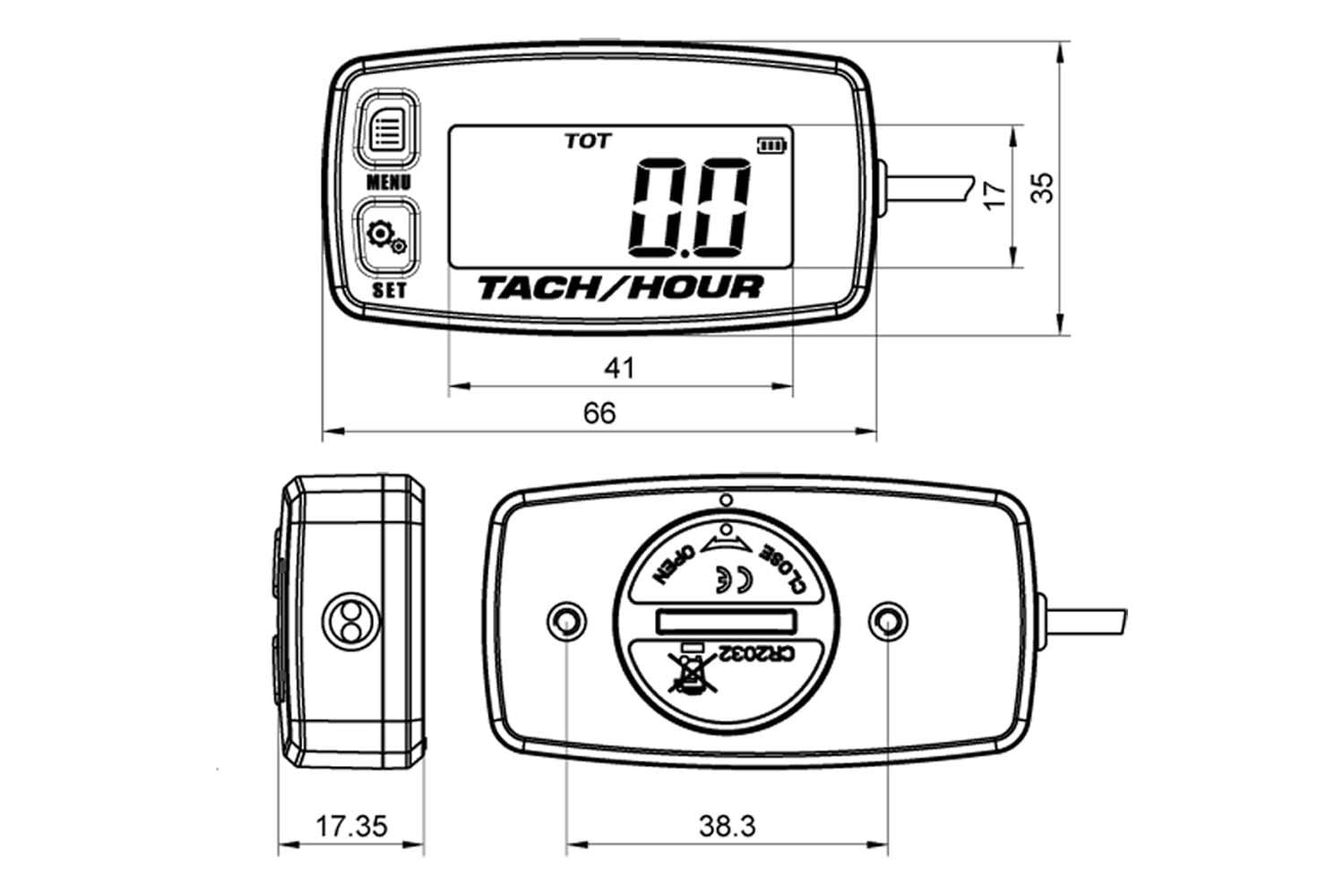

Product dimension 68.5mm×34.9mm×17.2 mm
Battery specification CR2032 210mAh
Housing material ABS
Waterproof rate IP65
Weight About 50g
Package Color box
Replaceable internal battery design for data retention
Display can be turned off
Waterproof IP65
