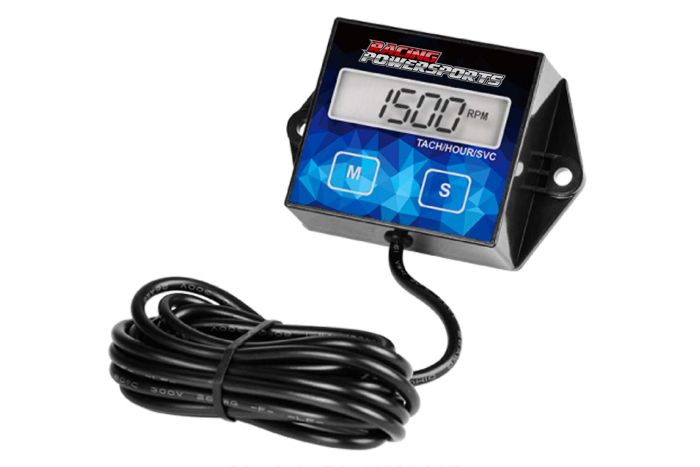

RacingPowerSports Digital Hour Meter Tachometer Maintenance Batt/Rep

The Racingpowersports RL-HM011F Tachometer is a device to measure the gas engine working time and real-time RPM value, which detected signal by spark plug,Programmable firing patterns to keep the RPM measurement more accurate,User shutdown can be save the battery lifetime with data retained, Waterproof design can be used for any external bad conditions.

1 Hour Meter (HOURS) Features---- Help you track how many hours you put on your engine.
When engine is off, display shows total run time of engine and remains visible.
Total Hours reading displays from 0 to 99,999 Hours, 0.1 hours accuracy,
Total hours can be reset.
2 Service timers (SERVICE) Features---- Countdown tracking time, Reminding maintenance, Like Air filter Replacement.
Programmable maintenance interval time from 0-99999 hours.
When the maintenance time arrives, the service warning icon flashes to remind.
Countdown tracking service reminder time, 0.1 hours accuracy.
3 Tachometer Features---- Display reads engine current RPMs , Help adjust engine idle
Accurately records your RPMs when the engine is running.
Can be programmed for different engine firing patterns.
Tachometer displays from 0-20,000 RPM with 10 RPM resolution.
RPMs update time refresh rate: 0.5S.

FEATURES

Tachometer----Real-time RPM
Hour Meter---- Total hours(Re-settable)
Maintenance service timer---- SVC
3 Programmable firing patterns.
Replaceable internal battery design for data retention
Use as hour meter only
Display shutdown
Waterproof IP65

INSTALLATION

Signal wire connection

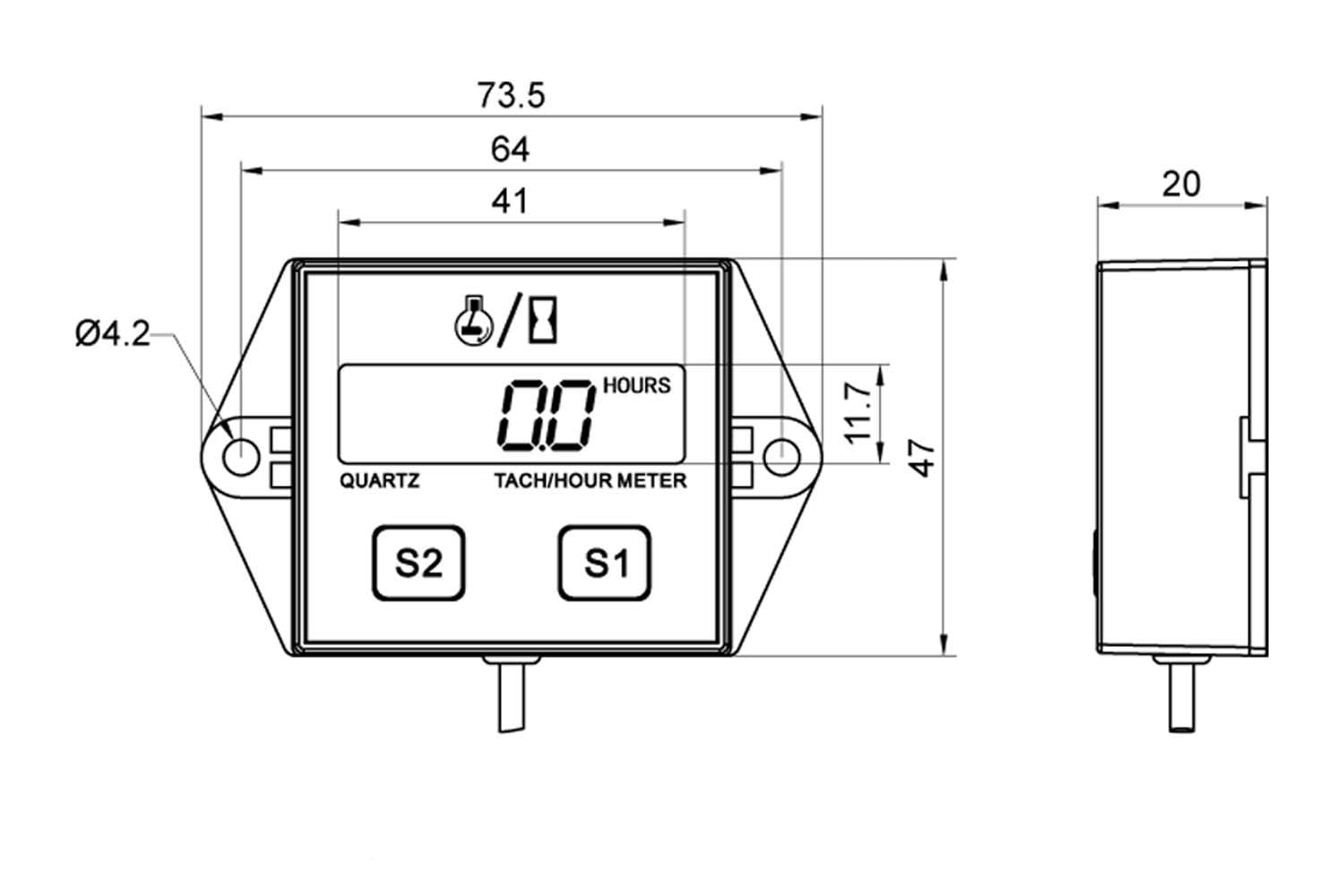

Surface screw installation
Surface 3M Velcro

APPLICATION

Gasoline engine equipment：Such as generators, lawn mowers, motorcycles, Chainsaws,Compressors, ATV, etc.
