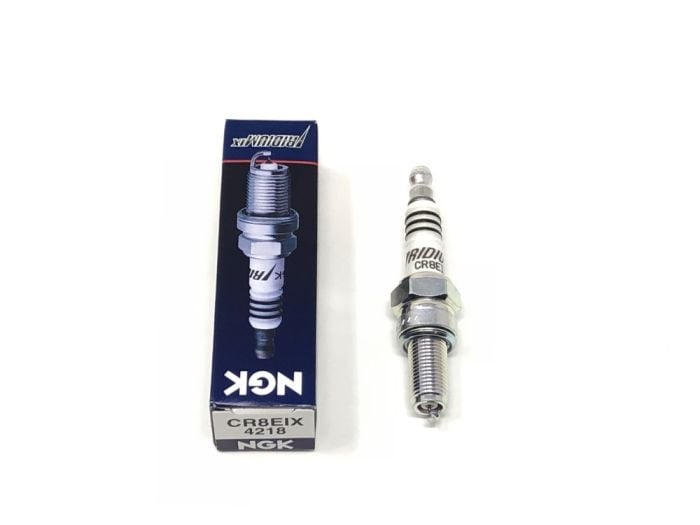

NGK IX Iridium Series plugs were designed specifically for the performance enthusiast.
Features:
Fine Wire center electrode ensures high durability and a consistently stable spark
Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines
Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
Corrugated ribs prevent Flashover
Pure alumina silicate ceramic Insulator, provides superior strength and better heat transfer
Copper Core aids in heat removal
Triple seals prevent leakage
Note: ALL PLUGS ARE SOLD PER UNIT
Fits: Yamaha YFZ450 / Raptor 700 / Rhino 700 / Grizzly 700 / Suzuki LTR450
Shell
Thread Size: 10mm Thread Pitch: 1.0mm
Seat Type: Gasket
Resistor Value: 5K Ohm
Reach: 19mm (3/4")
Hex Size: 5/8" (16mm)
Terminal Type: Threaded Stud
Overall Height: ISO
Gap: .031" (0.8mm)
Center Electrode
Material: Iridium
Type: Fine Wire
Size: 0.6mm
Projection: Non-Projected
Ground Electrode Material: Nickel
Type: Standard
Shape: Taper Cut
Quantity: 1
Specifications
Warranty: 1 Year
Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft. Heat Range: 8
Longevity: 50k Miles
Resistor: Yes
